DC Series Pumps

FL Series Diaphragm Pumps

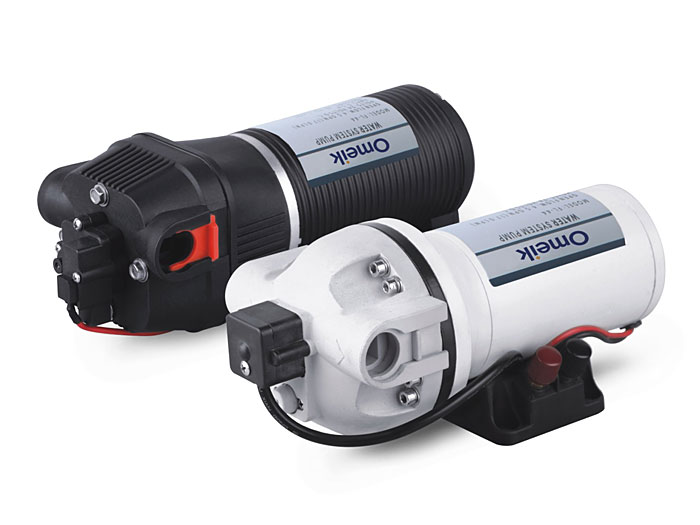

FL Series Diaphragm Pumps
  • Working Conditions
    Duty Cycle:Continous operation
    Liquid Temperature:140°F (60°C) Max.
    Priming Capabilities:6 feet (1.8 m) suction lift
    Max Pressure:70 PSI (4.8 bar)

Detailed

FEATURES & BENEFITS
- 4 chamber positive
- displacement diaphragm  pump
- self priming
- Can run dry
- Quiet operation
- Can be adjust pressure switch
- Easy quickly connect fittings

TYPICAL APPLICATIONS
- Agricultural Spraying
- General Industrial
- Automotive water supply system
- Marine water supply system
- RV water supply system
