DWP SERIES BOTTLED WATER DISPENSING SYSTEM

DWP series bottled water dispensing system pump was special designed to deliver the water under pressure to an individual drinking water faucet, coffee machines, tea machines, water dispensers, refrigerators, ice makers, and other application where portable water is needed. Pump system shuts off when the water source was empty, when fill in the water it automatically restarts.

FEATURES & BENEFITS

• Illuminated On/Off switch
• Dual inlet simultaneous draw from two bottles.
• Easiest way to connect this to your filtration kit/espresso machine.
• Float switch for auto shut-off when bottle is empty.
• Built-in check valve to prevent back flow.
• Universal seal cap fits most water containers.
• Compact size for easy mounting.
• Long life motor ensures years of reliable operation.
• Quick disconnect ports.
• Thermal protector prevent overheating,protecting the pump and
• control box  from damage
• New ergonomic T shaped wand handle.
• Power transformer AC to DC more safety.

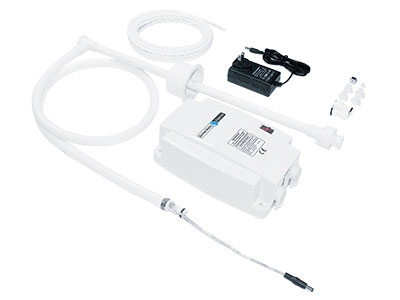

INVENTORY OF SYSTEM COMPONENTS

• Suction wand and hose assembly.
• Pump module with On/Off switch.
• 3.5 feet(1m) cord with plug.
• 20 feet (6.1m) of 1/4 inch(6.35mm) discharge hose.
• Universal seal cap Fits any 3, 5, and 6 gallon plastic water bottle.
• Installation and maintenance instructions.
